Button untuk Ganti Animasi dan TEXT Running Text di LED DOT MATRIX SIMULATOR WOKWI #wokwi #arduino

Pada bagian ini akan dibahas pembuatan sistem Running Text interaktif berbasis mikrokontroler Arduino Uno, modul tampilan LED Dot Matrix MAX7219 (8 Modul Cascaded), serta tombol push button penukar efek animasi pada software simulasi WOKWI. Skematik rangkaian ditunjukkan pada Gambar 1, program Arduino pada Kode 1, dan video pembuatan pada tautan Video 1. Sistem memanfaatkan pustaka MD_Parola dan MD_MAX72xx untuk menampilkan teks berjalan dan efek visual interaktif. Pengguna dapat menekan tombol push button untuk mengganti hingga 10 variasi animasi teks secara dinamis (seperti Scroll Left, Scroll Right, Scroll Up, Wipe, Blinds, dan Random) yang diproses secara presisi dengan teknik debouncing tombol.

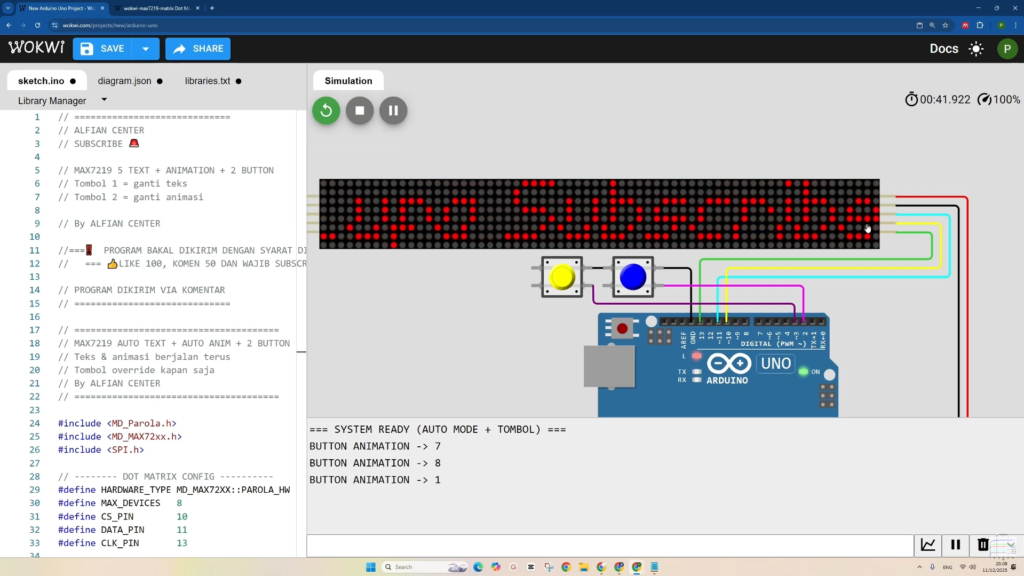

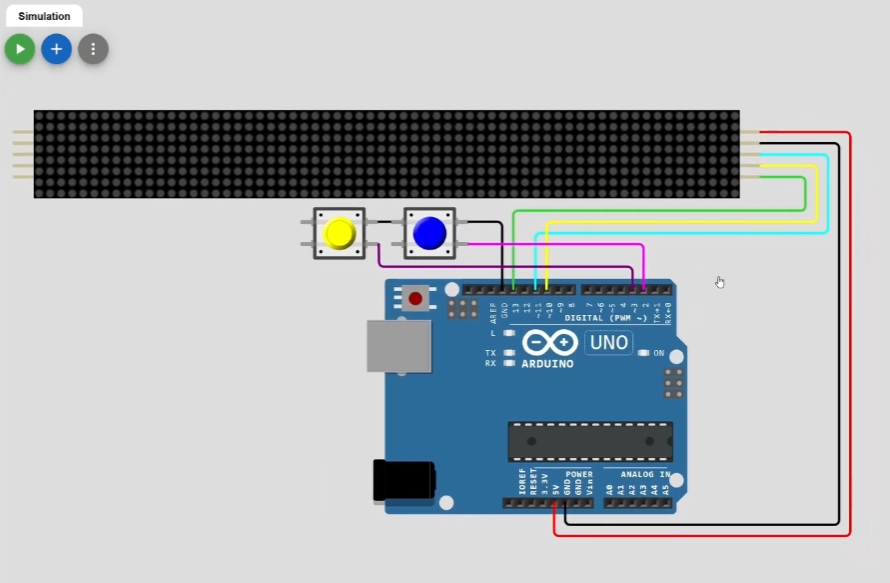

Gambar 1. Skematik rangkaian sistem

List Pin:

• Modul LED Dot Matrix MAX7219 (8-in-1 FC-16 / Parola HW)
  VCC => 5V
  GND => GND
  DIN (Data Pin) => Digital Pin 11 (DATA_PIN)
  CS (Chip Select) => Digital Pin 10 (CS_PIN)
  CLK (Clock Pin) => Digital Pin 13 (CLK_PIN)
• Tombol Pemilih Animasi (Push Button)
  Pin 1 => Digital Pin 2 (BTN_PIN – Mode INPUT_PULLUP)
  Pin 2 => GND

Kode Arduino 1. Kode Program

// =============================
// ALFIAN CENTER
// SUBSCRIBE
// Ganti Animasi Running Text dengan Button di LED DOT MATRIX
// PROGRAM BAKAL AKU KIRIM DENGAN SYARAT DIBAWAH
// LIKE 50, KOMEN 30 DAN * WAJIB SUBSCRIBE *
// PROGRAM DIKIRIM VIA KOMENTAR
// =============================

#include <MD_Parola.h>
#include <MD_MAX72xx.h>
#include <SPI.h>

#define HARDWARE_TYPE MD_MAX72XX::PAROLA_HW
#define MAX_DEVICES   8
#define CS_PIN        10
#define DATA_PIN      11
#define CLK_PIN       13

#define BTN_PIN 2   // Tombol untuk ganti animasi

MD_Parola myDisplay = MD_Parola(HARDWARE_TYPE, DATA_PIN, CLK_PIN, CS_PIN, MAX_DEVICES);

// ====== List Semua Efek ======
textEffect_t effects[] = {
  PA_SCROLL_LEFT,
  PA_SCROLL_RIGHT,
  PA_SCROLL_UP,
  PA_SCROLL_DOWN,
  PA_WIPE,
  PA_OPENING_CURSOR,
  PA_CLOSING_CURSOR,
  PA_RANDOM,
  PA_PRINT,
  PA_BLINDS
};

String effectName[] = {
  "SCROLL LEFT",
  "SCROLL RIGHT",
  "SCROLL UP",
  "SCROLL DOWN",
  "WIPE",
  "OPEN CURSOR",
  "CLOSE CURSOR",
  "RANDOM",
  "PRINT",
  "BLINDS"
};

int totalEffects = 10;
int indexEfek = 0;

int lastButtonState = HIGH;
unsigned long lastDebounce = 0;
const unsigned long debounceDelay = 200;

// =============================
void setup() {
  pinMode(BTN_PIN, INPUT_PULLUP);

  Serial.begin(9600);
  Serial.println("=== RUNNING TEXT MAX7219 + BUTTON ANIMASI ===");

  myDisplay.begin();
  myDisplay.setIntensity(2);
  myDisplay.displayClear();

  myDisplay.displayText(
    "Alfian Center",
    PA_LEFT,
    80,
    0,
    effects[indexEfek],   // Efek masuk
    effects[indexEfek]    // Efek keluar
  );

  Serial.print("Animasi: ");
  Serial.println(effectName[indexEfek]);
}

// =============================
void loop() {

  // ---- Cek Tombol ----
  int reading = digitalRead(BTN_PIN);

  if (reading == LOW && lastButtonState == HIGH && (millis() - lastDebounce > debounceDelay)) {
    lastDebounce = millis();

    // Ganti animasi ke berikutnya
    indexEfek++;
    if (indexEfek >= totalEffects) indexEfek = 0;

    // Terapkan animasi baru
    myDisplay.displayText(
      "Alfian Center",
      PA_LEFT,
      80,
      0,
      effects[indexEfek],
      effects[indexEfek]
    );

    Serial.print("Animasi berubah ke: ");
    Serial.println(effectName[indexEfek]);
  }

  lastButtonState = reading;

  // ---- Jalankan Tampilan ----
  if (myDisplay.displayAnimate()) {
    myDisplay.displayReset();
  }
}

// =============================
// ALFIAN CENTER
// SUBSCRIBE

Video 1. Video tutorial pembuatan
